Laser Cutting Systems
Fiber & CO2 Laser Cutting Systems For Precision Sheet Metal Processing.
CM10015 Large Format Laser Coil Cutting System
- Laser coil cutting machine, with cutting table length of 10m x 1.5m. Fiber laser power from 3 to 12kW.
- Unique Repositioning Function with high precision camera's allowing to cut longer parts (> 10m).
- Compact layout, available as stand-alone machine or integrated in a coil-cutting production line. Customizable.
- Cutting table lengths from 3m up to 12m long, and 1.5m width => CM3015 ... CM12015.
- Rolling cutting bed with integrated automatic slat cleaning.
- Direct cutting from Coil for higher production capacity.
M315 Full-Automatic Laser cutting system
Full-Automatic laser cutting system
- Automatic loading
- Sorting of parts through drop door or by robot
- Unloading of skeleton
- For sheet thickness <6mm
- High dynamic laser cutting with parallel kinematics!
- Working range 3x1.5m
Compact Laser Cutting machine Falcon M3015/M4015
- The PRC Laser Falcon M3015/M4015 is a compact high-dynamic 2D laser cutting machine designed for sheet metal formats of 3m x 1.5m and 4m x 1.5m.
- Underhanging flying optic gantry on centered X-axis concept for superior dynamics in the cutting process. Aggressive axis movements without loss of accuracy.
- Designed for Fiber laser beam delivery up to 8000 W.
- Thanks to this construction, the operator has ergonomic and easy access to the working area inside the machine.
Compact “Small Format” Laser Cutting machine M1212
- The PRC Laser M1212 is a compact high-dynamic 2D laser cutting machine with a working range of 1.25m x 1.25m
- With Fiber Laser of 2, 3 or 4 kW.
- Superior Dynamics without compromising the accuracy.
- Heavy and rigid one single piece machine frame structure, requiring no floor anchoring. Easy installation.
- Extremely ergonomic semi-automatic loading/unloading system, with tilting table.
Compact “General-Purpose” Laser Processing machine M2.5
- Compact & Flexible "General-Purpose" laser system,
with a work station volume of 1.25m x 1m x 1m(H) - Unique concept allows to process various kinds of workpieces, using special fixtures, rotary and/or tilting stations, etc...
- With CO2 or Fiber laser technology.
Various laser processing heads for different applications. - For laser cutting, welding, cladding, 3D-Printing, etc…
OEM Laser cutting machine series
Double-drive gantry flying optics laser cutting machines, with lightweight bridge optimized for high dynamics & accuracy.
- MA-3015/4020/6020: 3x1.5, 4x2, 6x2m (1 to 6kW)

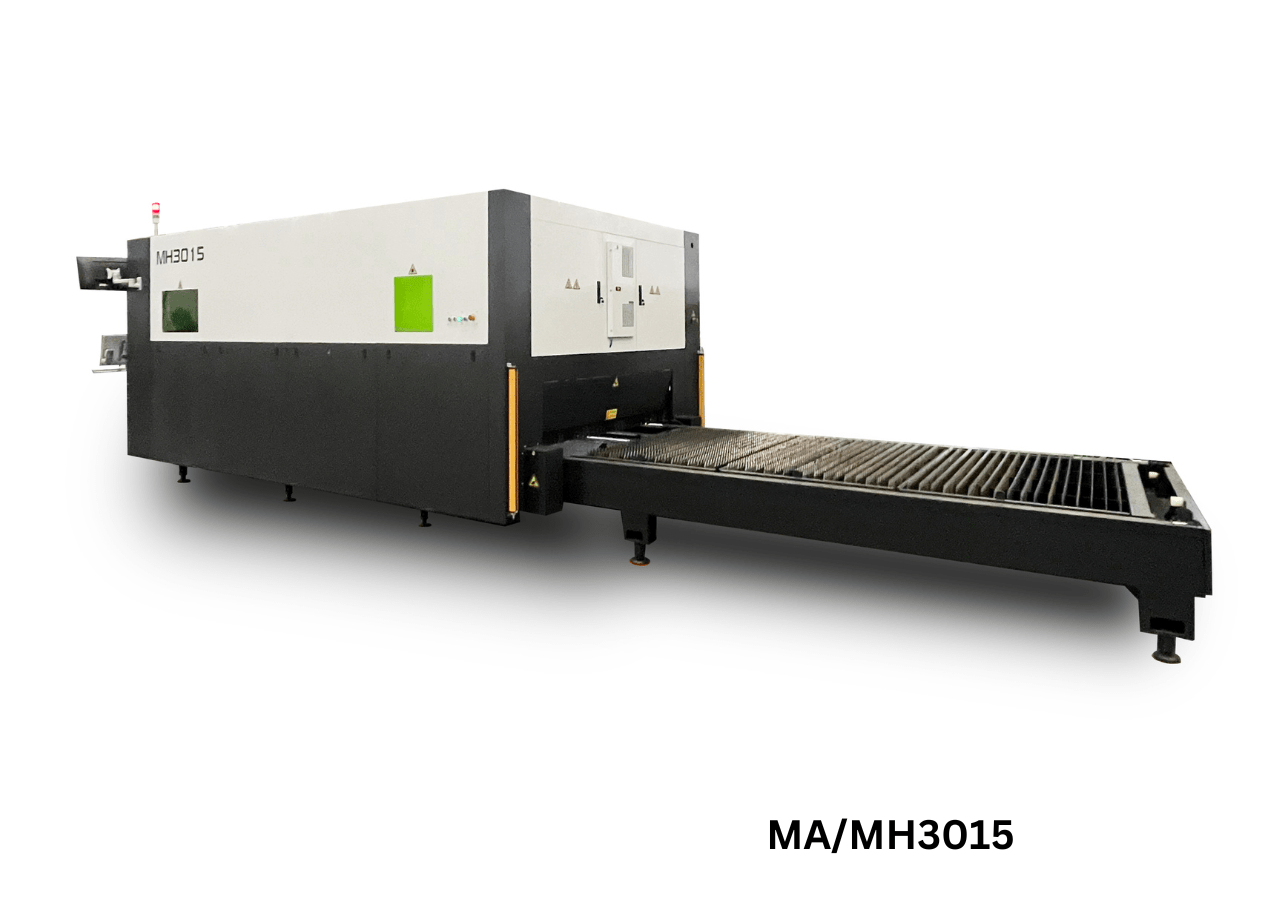

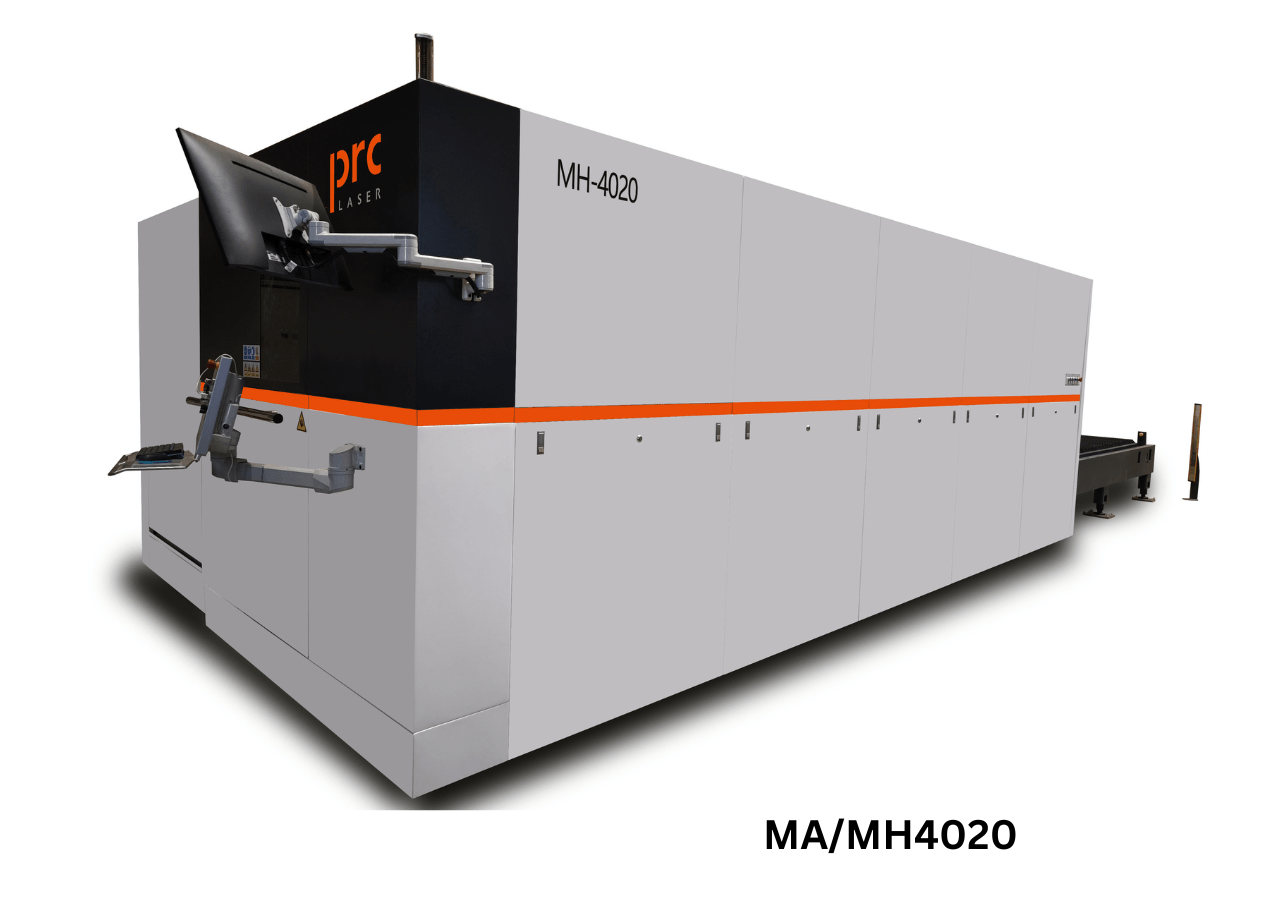

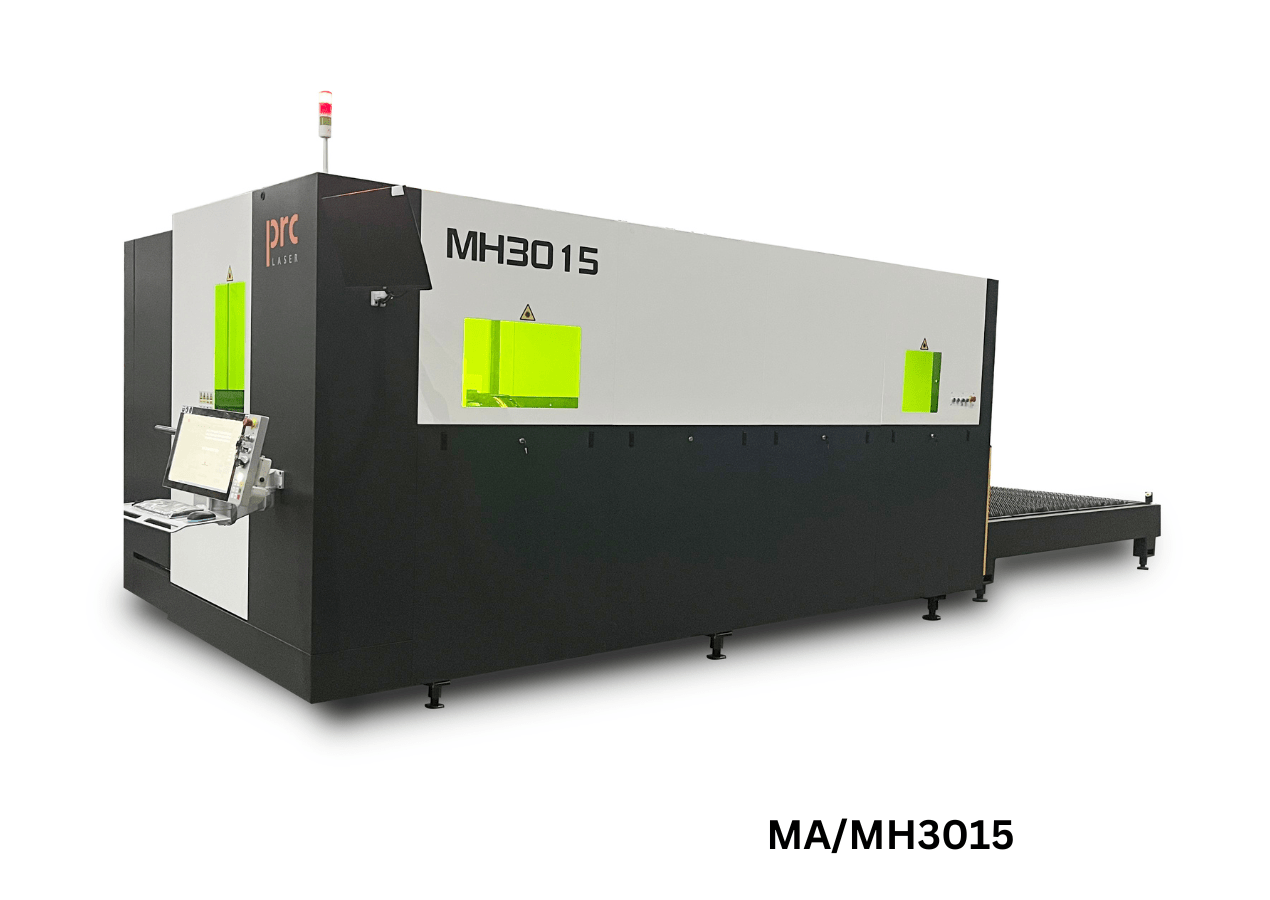

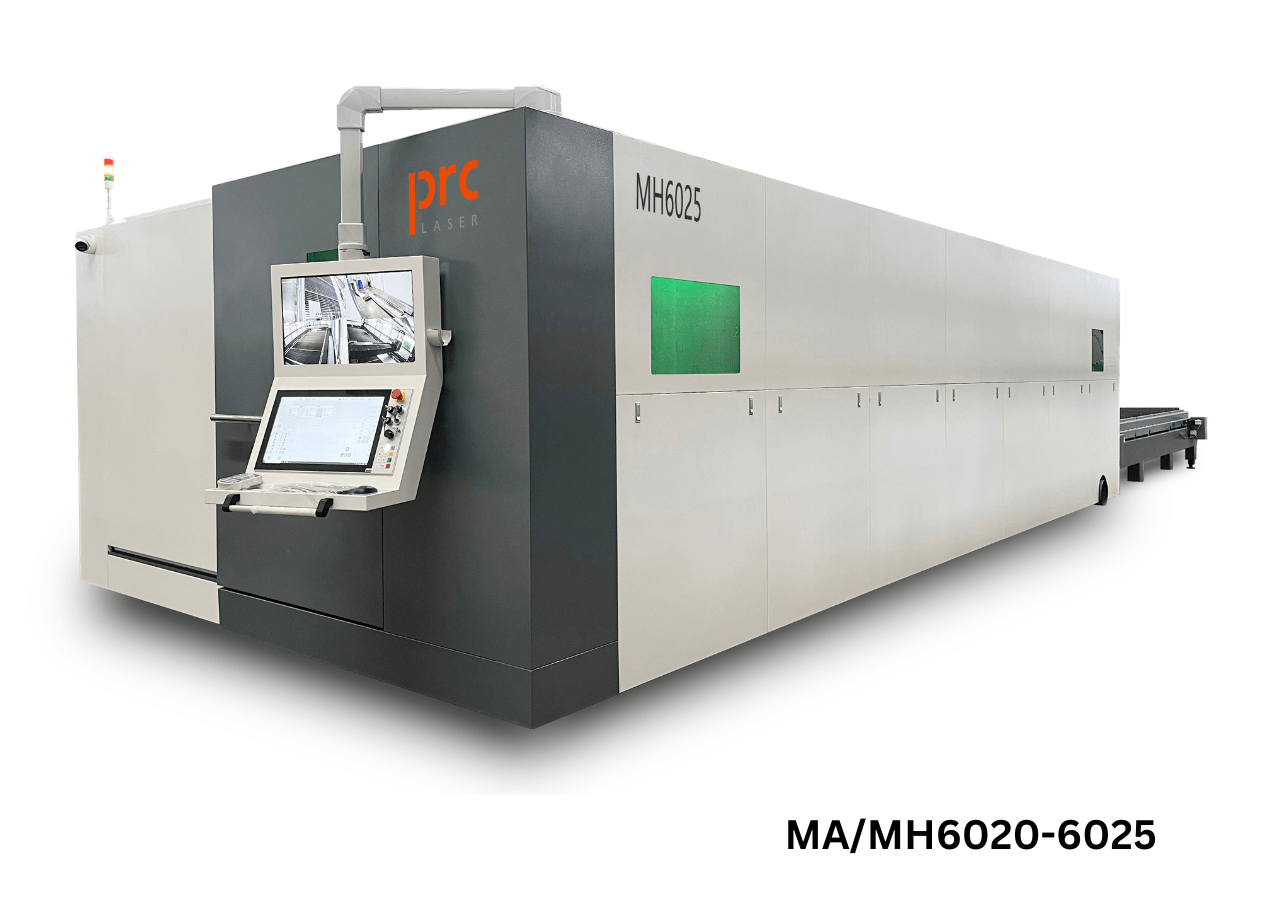

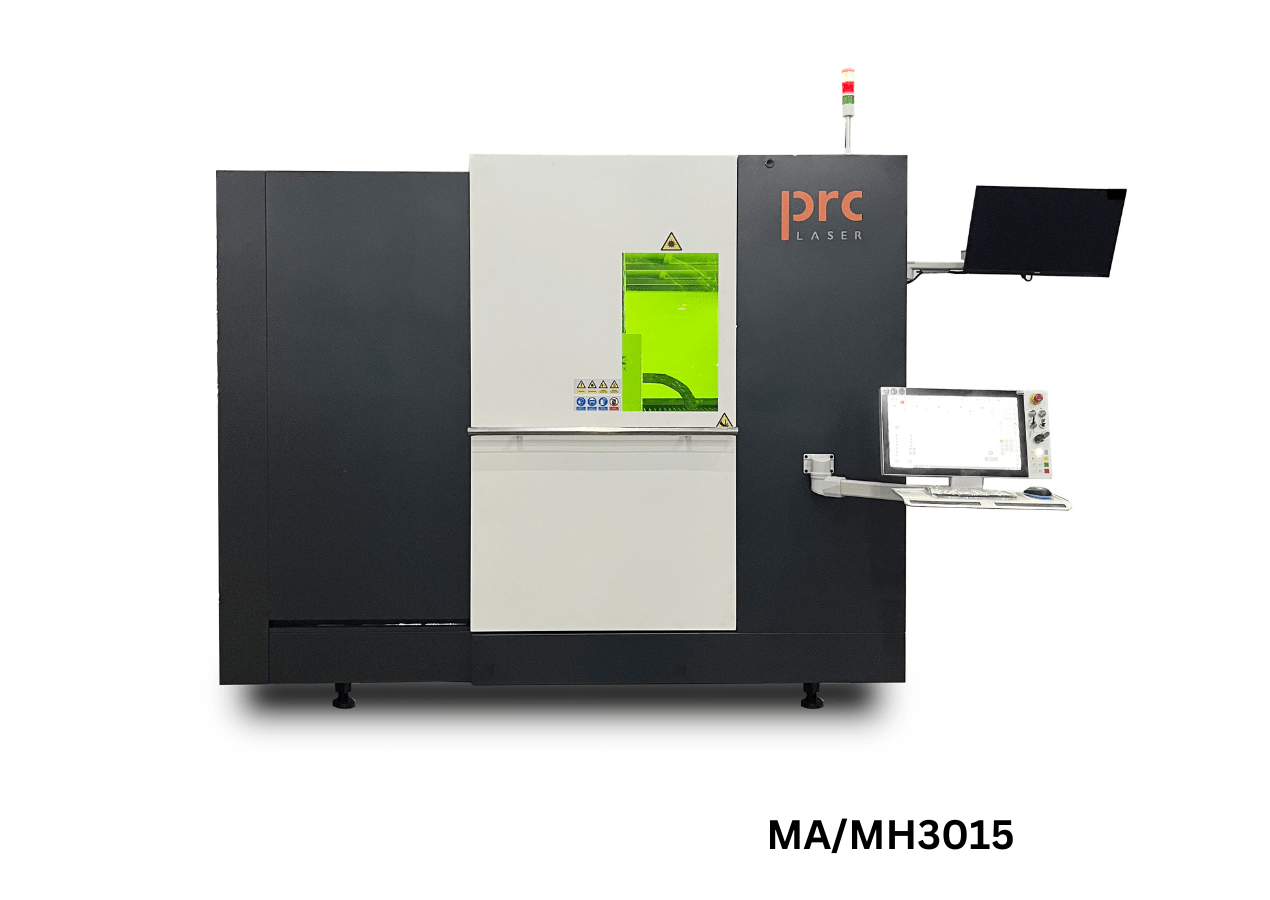

- MH-3015/4020/6020/6025 3x1.5, 4x2, 6x2, 6x2.5m (6 to 20kW)
- MH-series stands for: Higher power and higher dynamics for Higher Productivity!!!
